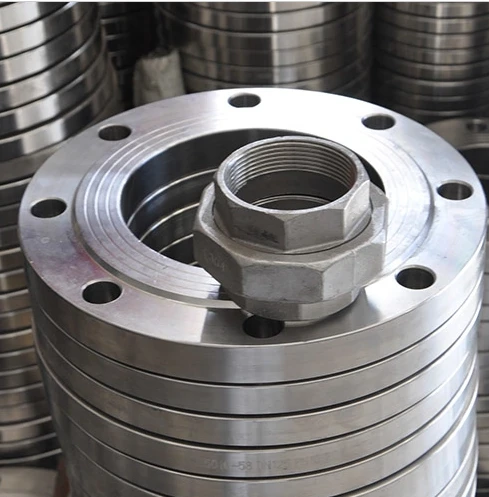

Flange dall aloi nicel c22
Meintiau: 1\/2 i 60 ″
Dosbarth: 150 i 2500 pwys,
Wyneb: ff, rf, rtj
Pwysau: PN6 i PN64
Stadardiau: ANSI B16.5, B16.47, MSS SP44
Dull: ffugio am ddim\/marw
Fel cyflenwr a gwneuthurwr blaenllaw yn Tsieina, mae GNEE Steel yn darparu cynhyrchion aloi cost-effeithiol sy'n seiliedig ar nicel.
- Anfon e-bost:ss@gneesteel.com
- Ffôn:+8615824687445
Fflange ddall Nickel C22 Cyflwyno
Flange dall aloi c22
Mae flange ddall yn ddisg sefydlog heb dyllau a ddefnyddir i gau diwedd system bibell neu lestr. Fe'u defnyddir yn aml at ddibenion amddiffyn neu i gau pibell yn gyflym. Mae flanges dall Hastelloy C22 yn darparu perfformiad selio da i atal hylifau neu nwyon rhag dianc ac fe'u defnyddir mewn amrywiaeth o ddiwydiannau gan gynnwys prosesu cemegol, olew a nwy, a chymwysiadau morol.
Mae Hastelloy C22 flanges cyfansoddiad cemegol
| Raddied | C | Mn | Si | Nghwm | S | NI | Crem | Fefau | Mo | W | V | P |
| Hastelloy C22 | 0. 010 Max | 0. 50 Max | 0. 08 Max | 2.5 Max | 0. 02 Max | Balau | 20 – 22.5 | 2 – 6 | 12.5 – 14.5 | 2.5 – 3.5 | 0. 35 Max | 0. 02 Max |
Dimensiynau o Hastelloy C2000 FLANGE BLIND
| Maint Pibell Arferol (NPS) | Y tu allan i daimedr y flange | Canolbwynt yn sylfaen dia | Trwch flanges | Dia o wyneb uchel | Hwb tdru lengtd | Turio a dia | Canolbwynt yn bevel dia | Adran Soced | Radiws ffiled | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gwddf Weld (WN) | Rhydd (cymal lap) | Sorf (slip-on) npt (edau) sWrf (soced) | Rhydd (cymal lap) | Sorf (slip-on) sWrf (soced) | ||||||||
| O | X | Q | R | Y | Y | Y | B | W | H | Z | r | |
| 1/2 | 3-1/2 | 1-3/16 | 7/16 | 1-3/8 | 1-7/8 | 5/8 | 5/8 | .90 | .88 | .84 | 3/8 | 1/8 |
| 1-1/4 | 4-5/8 | 2-5/16 | 5/8 | 2-1/2 | 2-1/4 | 13/16 | 13/16 | 1.72 | 1.70 | 1.66 | 9/16 | 3/16 |
| 3/4 | 3-7/8 | 1-1/2 | 1/2 | 1-11/16 | 2-1/16 | 5/8 | 5/8 | 1.11 | 1.09 | 1.05 | 7/16 | 1/8 |
| 1 | 4-1/4 | 1-15/16 | 9/16 | 2 | 2-3/16 | 11/16 | 11/16 | 1.38 | 1.36 | 1.32 | 1/2 | 1/8 |
| 1-1/2 | 5 | 2-9/16 | 11/16 | 2-7/8 | 2-7/16 | 7/8 | 7/8 | 1.97 | 1.95 | 1.90 | 5/8 | 1/4 |
| 3 | 7-1/2 | 4-1/4 | 15/16 | 5 | 2-3/4 | 1-3/16 | 1-3/16 | 3.60 | 3.57 | 3.50 | 13/16 | 3/8 |
| 3-1/2 | 8-1/2 | 4-13/16 | 15/16 | 5-1/2 | 2-13/16 | 1-1/4 | 1-1/4 | 4.10 | 4.07 | 4.00 | 7/8 | 3/8 |
| 2 | 6 | 3-1/16 | 3/4 | 3-5/8 | 2-1/2 | 1 | 1 | 2.46 | 2.44 | 2.38 | 11/16 | 5/16 |
| 2-1/2 | 7 | 3-9/16 | 7/8 | 4-1/8 | 2-3/4 | 1-1/8 | 1-1/8 | 2.97 | 2.94 | 2.88 | 3/4 | 5/16 |
| 4 | 9 | 5-5/16 | 15/16 | 6-3/16 | 3 | 1-5/16 | 1-5/16 | 4.60 | 4.57 | 4.50 | 15/16 | 7/16 |
| 8 | 13-1/2 | 9-11/16 | 1-1/8 | 10-5/8 | 4 | 1-3/4 | 1-3/4 | 8.75 | 8.72 | 8.63 | 1-1/4 | 1/2 |
| 5 | 10 | 6-7/16 | 15/16 | 7.5/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.69 | 5.66 | 5.56 | 15/16 | 7/16 |
| 6 | 11 | 7-9/16 | 1 | 8-1/2 | 3-1/2 | 1-9/16 | 1-9/16 | 6.75 | 6.72 | 6.63 | 1-1/16 | 1/2 |
| 10 | 16 | 12 | 1-3/16 | 12-3/4 | 4 | 1-15/16 | 1-15/16 | 10.92 | 10.88 | 10.75 | 1-5/16 | 1/2 |
| 16 | 23-1/2 | 18 | 1-7/16 | 18-1/2 | 5 | 3-7/16 | 2-1/2 | 16.19 | 16.16 | 16.00 | 1-3/4 | 1/2 |
| 12 | 19 | 14-3/8 | 1-1/4 | 15 | 4-1/2 | 2-3/16 | 2-3/16 | 12.92 | 12.88 | 12.75 | 1-9/16 | 1/2 |
| 14 | 21 | 15-3/4 | 1-3/8 | 16-1/4 | 5 | 3-1/8 | 2-1/4 | 14.18 | 14.14 | 14.00 | 1-5/8 | 1/2 |
| 18 | 25 | 19-7/8 | 1-9/16 | 21 | 5-1/2 | 3-13/16 | 2-11/16 | 18.20 | 18.18 | 18.00 | 1-15/16 | 1/2 |
| 20 | 27-1/2 | 22 | 1-11/16 | 23 | 5-11/16 | 4-1/16 | 2-7/8 | 20.25 | 20.20 | 20.00 | 2-1/8 | 1/2 |
| 24 | 32 | 26-1/8 | 1-7/8 | 27-1/4 | 6 | 4-3/8 | 3-1/4 | 24.25 | 24.25 | 24.00 | 2-1/2 | 1/2 |
Ymweliad â Chwsmer Gnee Steel
FLANGE ALLOY NICKEL C22
Amgylchedd ffatri grŵp gnee
Aloi flange dall C22
Pecynnu cynnyrch grŵp gnee
Fflange Ddall Alloy Nickel Hastelloy C22
Cwestiynau Cyffredin
Q1: A yw'n bosibl anfon samplau?
Wrth gwrs, rydym yn cynnig samplau am ddim ac yn mynegi llongau i gwsmeriaid ledled y byd.
Q2: Ydych chi'n cynnig gwasanaeth ar gyfer cynhyrchion wedi'u haddasu?
Oes, gallwn gynhyrchu yn ôl eich manylebau a'ch lluniadau.
Q3: A allaf i ymweld â chi yn eich ffatri?
Mae croeso i gwsmeriaid o bob cwr o'r byd ymweld â'n ffatri.
